DEtachlog

Patented technology

  • Based on ultrasound damping measurement.
  • 15 years of research at the Federal Institute of Technology in Zurich (ETH).



How it works

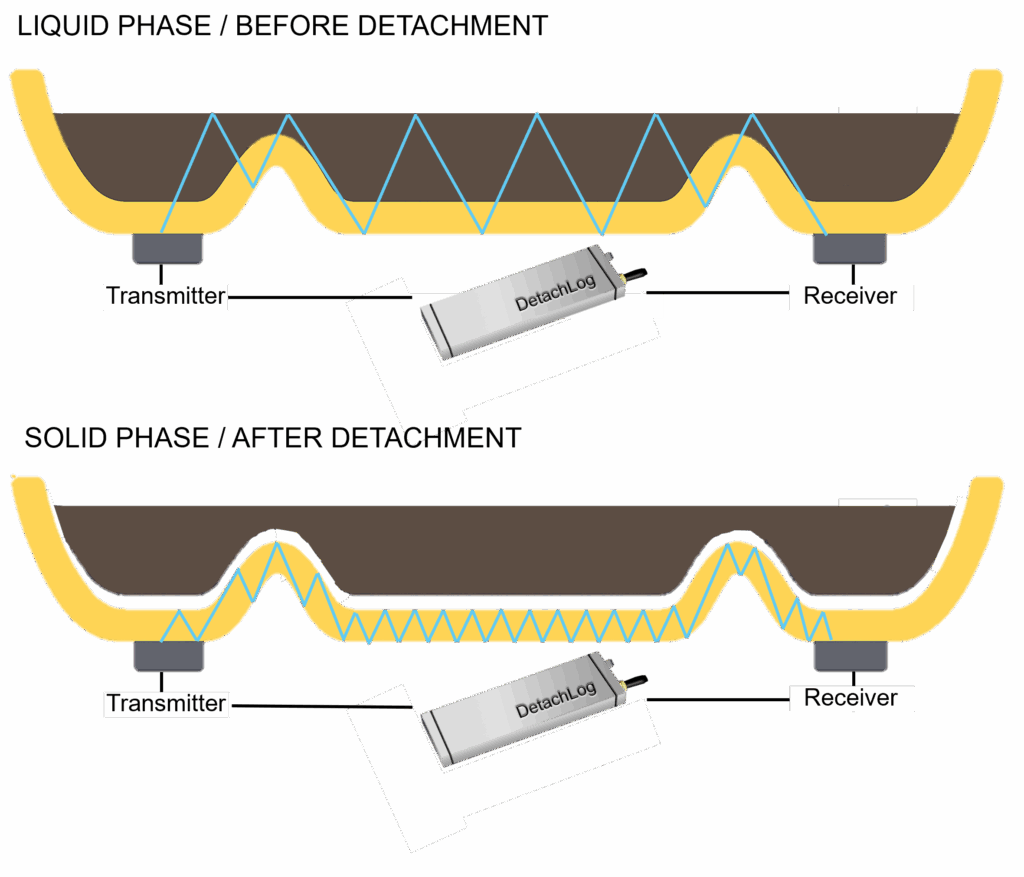

  • Measures the ultrasound wave between transmitter and receiver sensors installed on a mold filled with chocolate
  • The ultrasound attenuation allows for a highly accurate fingerprint of the chocolate structuring and crytallization quality from liquid phase to solid phase

8 parameters measured with DetachLog

Viscosity parameters

1- Viscosity damping: accurately reflects the viscosity of the tempered mass

Crystallization parameters

2- Crystallization onset

3- Crystallization efficiency

4- D-Log temper: Authentic temper index

Detachment parameters

5- Detachment onset

6- Detachment duration: optimal cooling time

7- Detachment offset

8- Detachment homogeneity

Optimum product quality

Maximum production efficiency
